Full HD 1080P 7inch High Speed Dome HD PTZ Outdoor Camera With 9pcs Array Led
Product Overview
1. Infrared function
1> Minimum Illumination:0 Lux
2> 9pcs Array Led,IR Distance 120M
3> Infrared light with a magnification distance matching algorithm.
4> The constant current circuit design,Infrared ages can be reach 30 thousand hours.
2. System Function
1) Adopt high-performance sensor, resolution achieve 1920x1080.
2) Precision motor-driven,keen responsive,smoothly operation,the precision deviation less than 0.6 degree, the image does not have any vibration under any speed.
3) Support API interface , Hikvision SDK ONVIF , PSIA, CGI protocol.
4) Support Chinese-English IE interface and operation tips function, user friendly interface.
5) Support system dual backup function to ensure that the data not lost.
6) Support pack function, when the camera in a certain period of time no operation,camera will automatically turn to the guard position monitoring.
7) Support for lightning protection, anti surge, anti surge.
8) Protection grade: IP66.
3. Zoom camera function
1) support auto iris,auto focus, AWB and BLC.
2) Support low illumination,0.05Lux/F1.4(color),0.01Lux/F1.4(white)
3) Support 3D digital noise reduction,digital WDR function.
4) Effective pixels 2.0 million pixels (1080P).
5) 20x optical zoom
3. Network function
1) Adopt high-performance Hisilicon platform, stable and reliable performance.
2) Support Ethernet control
3) Can view and control the image via IE browser and CMS software
4) Support NAS video storage, video can be broken network downloads, maximum 8 NAS disk support.
5) Support two levels of user rights management, support for authorized users and passwords, support HTTPS encryption and 802.1x IEEE network access control.
6) Adopt H.264 high profile/M-JPEG dual encoding, video output 1080P+D1 ;
7) Support multi-protocols:IPv4/IPv6,HTTP,HTTPS,802.1x,Qos,FTP,SMTP,UPnP,SNMP,
DNS,DDNS,NTP,RTSP,RTP,TCP/IP,DHCP,PPPoE
4. PTZ Control
1) Adopt network communication protocol.
2) 220°endless pan range and 75°tilt range, support auto-flip 180°, non-surveillance blind area
3) Pan peed 0.6°~220°/s, tilt speed 0.8°~75°/s,support proportional zoom function, running speed will be auto adjusted according to the zoom.
Specification
| Model Number | SAV-67H-DMX-I |
| Camera | Image Sensor: | 1/2.8"Progressive scan CMOS |
| Effective Pixels: | 2.0MP pixels |
| Min. Illumination: | Color: 0.05Lux@(F1.4, AGC ON), B/W: 0.01Lux@(F1.4, AGC ON) 0Lux with IR |
| White Balance: | Auto/Manual/ATW/Indoor/Outdoor/Daylight lamp/Sodium lamp |
| AGC: | Auto/Manual |
| S/N Ratio: | >52dB |
| Day & Night: | IR Cut Filter |
| Digital Noise | 3D/2D |
| Back light Compensation: | support |
| Wide Dynamic Range: | Support |
| Shutter Speed: | 1/10s-1//10,000s |
| Focus Mode: | Auto/Manual/ONEAF |
| Lens | Focal Length: | 4.7 ~ 94mm, 20x |
| Zoom Speed: | Approx.2.7s(Optical Wide-Tele) |
| Angle of View: | 61.4 ~ 2.9 degree (Wide-Tele) |
| Min. Working Distance: | 10mm ~ 1,500mm (Wide-Tele) |
| Aperture Range: | F1.6 ~ F 3.5 |
| Pan/Tilt | Pan / Tilt Range: | Pan: 360° endless; Tilt: -0° ~ 90° (Auto-Flip) |
| Pan / Tilt Speed: | Pan Speed: 0.6° ~ 220° /s,Tilt Speed: 0.8° ~ 75° /s |
| Proportional Zoom: | support |
| Number of Preset: | 220 |
| Patrol: | 8 patrols, up to 32 presets per patrol |
| Park Action: | Pattern / Pan Scan / Tilt scan / Random scan / Frame scan |
| Network | Ethernet: | 10Base-T/100Base-TX, RJ45 connector |
| Max. Image Resolution: | 1920x1080 |
| Frame Rate: | 50HZ:25fps(1920x1080) 60HZ:30fps(1920x1080) |
| Image Compression: | H.264/MJPEG |
| Same time Preview Video | Max 6channel |
| Dual Rate | 1080P+D1 |
| Protocols: | IPv4/IPv6, HTTP, HTTPS, 802.1x, Qos, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTP, TCP/IP, UDP, IGMP, ICMP, DHCP, PPPoE |
| User/Host Level: | Up to 32 users,3 Levels: Administrator, Camera control, Live view only |
| Security Measures: | User authentication (ID and PW) |
| Host authentication (MAC address) |
| Client | Support Hikvision iVMS-4200, PCNVR |
| Net Interface | Built in RJ45,Support 10M/100m |
| Integration | Application programming: | Open-ended API, support hikvision SDK Onvif, PSIA and CGI |
| Web Browser: | IE 7, IE 8, IE 9, Chrome 8+, Firefox 3.5+, Safari 5+ |
| IR distance: | 100m-120m |
| RS-485 Protocols: | HIKVISION, Pelco-P, Pelco-D, self-adaptive |
| Working Temperature | -20°C~60°C , 90% or less |
| Humidity |
| General | Protection Level: | TVS3000V lightning protection, surge protection and voltage transient protection, weather proof: IP66 |
| Package Dimension: | 300x300x470 |
| Weight (approx.): | 5.5Kg |
| Mount Option: | Wall mount, Ceiling mount |
| Power: | DC12V/4A |

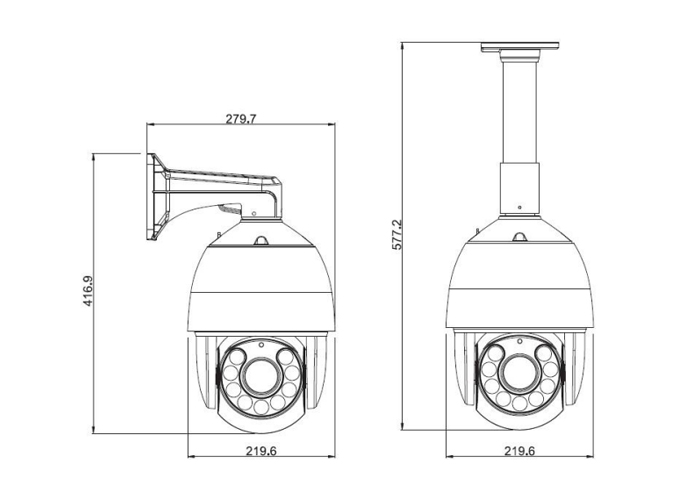

Drawing
