8CH 1080N XMeye 5 IN 1 AHD DVR Digital Video Recorder Built in 10.1inch LCD Screen
Features

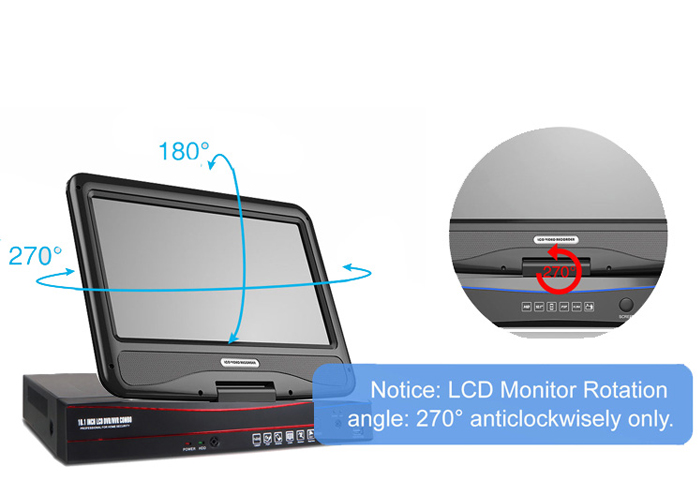

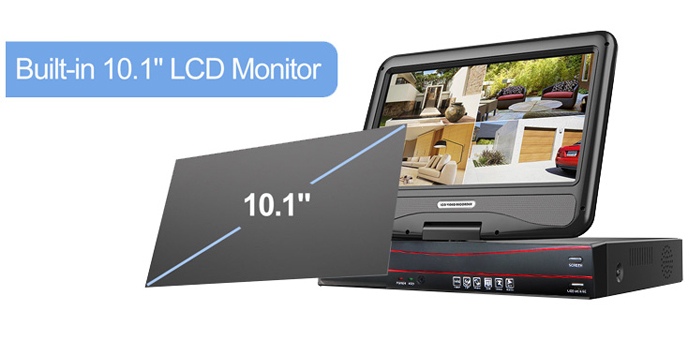

* Build in10.1inch standard definition LCD Screen (resolution:1024*768), LCD screen can support 270 degree rotate.
* AHD/HVR/NVR/CVI/TVI features 5-in-1
* Display:support VGA /HDMI HD output.
* Support ONVIF; access third party;
* Support multiple cloud technology, network penetration, alarm information pushed to your phone and other functions;
* Support web, CMS, center platform management software MYEYE, provide SDK development;
* Mobile monitor: Support various mobile monitoring(Iphone,Android)；
* Remote Access, With DNS (ARSP),easy to monitor remotely
Specification
| System | Main processor | Hi3520D |
| Interface | Preview | 4ch |
| Video | Code | H.264(High Profile) |
| Monitor quality | HDMI VGA |
| Encode ability | 4*1080N/4*AHD-M |
| Decode ability | 1*1080N/1*AHD-M |
| Multi-mode input | analog: 4*1080N;4*AHD-M;4*AHD-L; |
| hybrid: 2*AHD-M(analog)+2*720P(network) |
| Network only:4*720P;8*1080P;4*1080P;1*1080P;8*720P ;12*960P |
| Motion Detection | Each screen can be set to 192 (16 * 12) detection areas;
multi-level sensitivity can be set (Limited local channel) |
| Audio | Audio compression | G.711A |
| Intercom | support |
| Record & playback | Record mode | manual>alarm>motion detection>timing |
| Local Playback | 4ch(local input mode |
| Search mode | Search by time, calendar, event, channel |
| Storage & backup | Video storage | HDD, network |
| Backup mode | Network, USB hard disk, USB burner, SATA burner |
| External Interface | Video input | 4ch BNC |
| Video output | 1ch VGA, 1ch HDMI |
| Loop Vout | N/A |
| Audio input | 4ch RCA |
| Audio output | 1ch RCA |
| Alarm input | 0( Can be extended to 4ch) |
| Alarm output | 0( Can be extended to 1ch) |
| Network interface | RJ45 10M/100M self-adaption |
| PTZ control | 1*RS485, Support kinds of PTZ protocols |
| USB | 3* USB 2.0 ports |
| HDD | 1*SATA ports (Max4TB/per) |
| Wireless | 3G, WIFI (extend via USB) |
| General | Power supply | 12V/3A |
| Power Consumption | <15W (without HDD) |
| Working environment | Temperature:0℃—+55℃,Humidity:10%—90%,
Atm:86kpa—106kpa |
| Dimension | 250mm(L)* 240mm(W)* 46mm(H) |
| Weight | 2.5Kg |
Package:
1pc AHD 1080N 4CH MINI DVR
1set USB Mouse
1pc Manual CD
1pc Power Supply
1pc Color box
