| LCD | Item series | SAV-IPC1800ADH Plus |

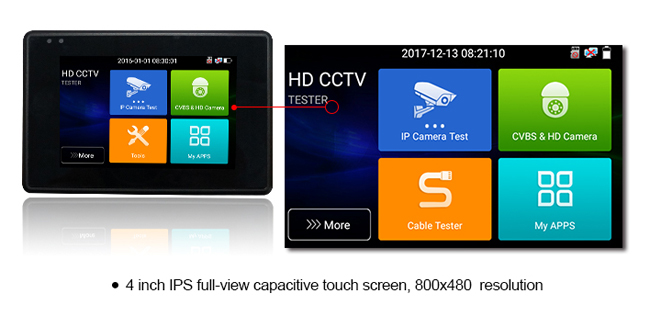

| Display | New 4 inch IPS touch screen , 800*480 resolution |
| Video Mode | CVBS | 1 channel BNC input, NTSC/PAL (Auto adapt) |
| PTZ control, RS485 control, Baud 600-115200bps, compatible with more than 30 protocols such as PELCO-D/P, Samsung, Panasonic etc |
| IP camera test | IP Discovery/Quick ONVIF/IPC test /RTSP play /Client APK |
| 4K/H.265/H.264 | Rapid Video | Auto view the video, create testing report |
| Hik test tool | pressing just one key to activate hikvision camera , Image test, can modify the user name, password and IP parameters |
| Dahua test tool | Dahua camera test, modify the username, password and IP parameters |
| Coaxial HD test | 8MP TVI camera test, 3840 x 2160P 15 FPS, UTC control/ call OSD menu |
| 4MP CVI camera test, 2560 x 1440P 25/30 FPS, UTC control d call OSD menu |
| 5MP AHD test, 2560x1944P 12.5F/20F, UTC control d call OSD menu |
| Zoom Image | 4x zoom, to enlarge image, Screen snapshot, record, save, view and record and play back |

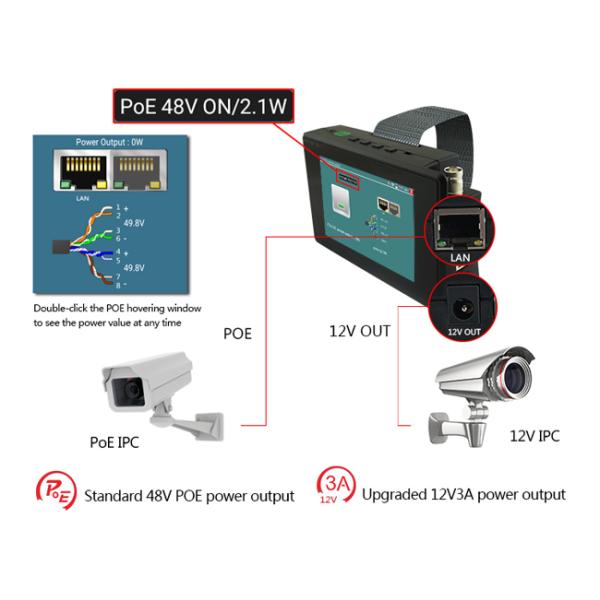

| | 12V/3A power | Output DC12V/3A power out, supply temporarily power for the camera |
| Power output | PoE power output | 48V PoE power output, max power 24W |
| Network test | Link monitor,port flashing, Ping test |
| Audio test | 1 channel audio signal input, test whether sound normal, 1 channel audio signal, to connect headphone |
| Data monitor | Captures and analyzes the command data from controlling device, also can send hexadecimal |
| Drop-down menu | You can select PoE power switch, IP setting, CVBS, LAN info, etc in any interface |
| External power supply | DC 12V 1A |
| Battery | Built-in 7.4V Lithium polymer battery , 2400mAh |
| Rechargeable | After charging 4~5 hours, normal working time 7 hours |
| Operation setting | OSD menu, select your desired language: English, Chinese, Korean, Russian, Italian, French, Polish, Spanish, Japanese etc |
| Auto off | 1-30 (mins) |
| Working Temperature | -10℃---+50℃ |
| Working Humidity | 30%-90% |
| Dimension/Weight | 126mm x 83mm x 33mm / 0.32kg |
