Poe Power Splitter 48V / Tp Link Splitter Poe Separate The Power And Data

Name: Poe Power Splitter 48V Tp Link Splitter Poe Separate The Power And Data
Brand: WINBO
Price: 1 USD

China Poe Power Splitter 48V / Tp Link Splitter Poe Separate The Power And Data wholesale

Brand Name : WINBO

Model Number : SAV-PD802

Certification : CE,ROHS

Place of Origin : CHINA

MOQ : 5PCS

Price : Negotiable

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 10000PCS Per Month

Packaging Details : Neutral Factory Box

Standard : IEEE802.3 af

Interface type : RJ45

Input power : DC 48V

Operating humidity : 10%~90%(Non-condensing)

Storage humidity : 5%~95%(Non-condensing)

Weight : 0.05kg

Storage temperature : -30~60°

Operating temperature : -20~50°

Contact Now

15.4W PoE splitter CCTV Camera Accessories Separate the power and data via cable transmission

Product Profile

SAV-PD802,15.4W PoE splitter,it is an economical and practical PoE remote power equipment base on IEEE802.3af/at standard. It can separate the power and data via cable transmission.Proper matching use with poe switch or PSE injector which meet standard IEEE802.3af,Provides power and data at the same time for the terminal device does not support POE.SAV-PD802 Model output two tranches voltage of 5V/12V use with the power supply equipment, It helps to expand wireless city, Security monitoring and other poe practical place, and is not restricted by layout of power line.

Key features

Support international standard IEEE802.3 af(15.4W);
Support 10/100Mdata transmission
SAV-PD802 support 37V-57V voltage transmission,Automatically detects power supply from PSE power supply module
12V/5V two kinds of power output,easy to access Poe network for non-poe terminal
Support the isolation circuit protection,can effectively protect electrical equipment.
Support the short circuit,overvoltage protection

Specifictions

Model	SAV-PD802
Rate	10/100M
Input power	DC 48V/0.35A
Output power	Output voltage:12V
Output power	Output current(MAX):1.25A
POE character	Support IEEE802.3 af standard(15.4W)
Power supply mode	Support 1/2(+),3/6(-)；4/5(+),7/8(-)；
Power supply mode	Support 1/2(+),3/6(-)；4/5(+),7/8(-)；
Interface type	1 input RJ45 power:PWR+DATA
	1 output RJ45 port:DATA
	1 DC output port；
Protocol Standards	IEEE 802.3 i 10 BASE-T
	IEEE 802.3 u 100 BASE-TX
	IEEE 802.3 x Flow Control
	IEEE 802.3 af Power over Ethernet
LED indicator	Yellow light:POE
Operating temperature	-20~50°
Storage temperature	-30~60°
Operating humidity	10%~90%(Non-condensing)
Storage humidity	5%~95%(Non-condensing)
Dimensions	84mm * 28mm *25mm
DC connector	(ODID)5.52.1mm
Negotiation pattern	Support Auto-MDIX
Physical Medium	10/100 Base-TX:3/4/5 twisted-pair
	Support maximum transmission distance
	100M
Weight	0.05kg


Poe Power Splitter 48V / Tp Link Splitter Poe Separate The Power And Data

Product Tags:

high speed hdmi cable 4k

poe switch 5 port gigabit

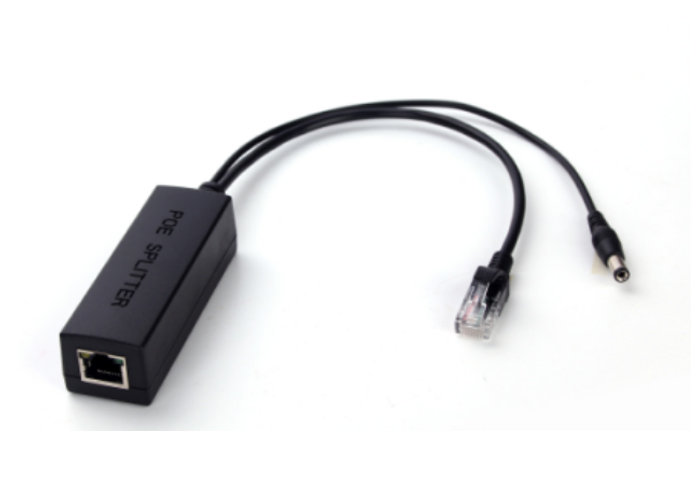

Poe Power Splitter 48V / Tp Link Splitter Poe Separate The Power And Data Images
